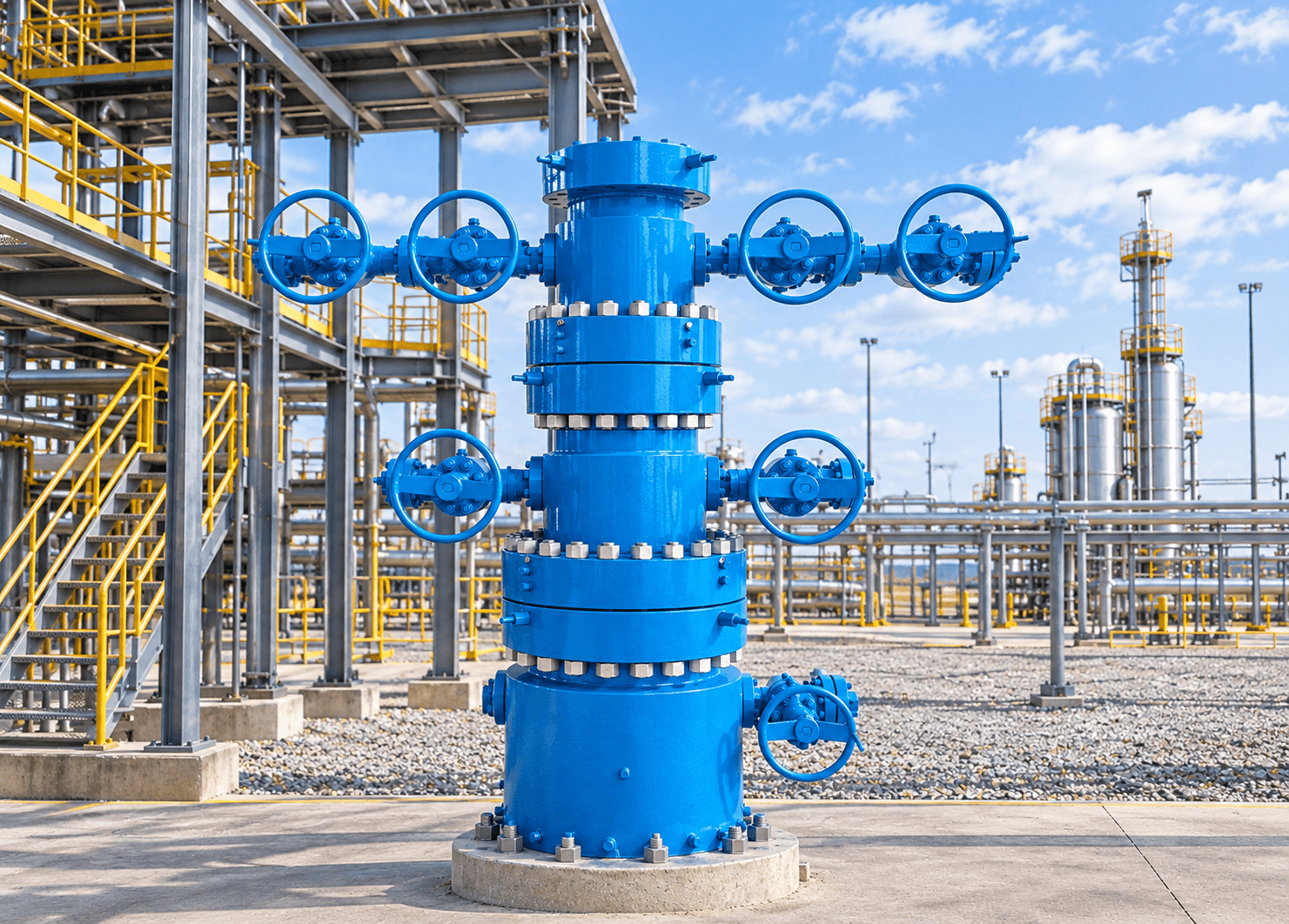

API 6A Valves
RANGER offers API 6A wellhead and Christmas tree valve products, including choke, ball, ball screw, and slab gate valves, as well as gate, globe, and check valves.
Configurations
API 6A Gate Valves
Wellhead gate valve, 1-13/16" to 9" bore, rated 2,000 to 20,000 psi.
View full details
API 6A Slab Gate Valves
Model: EFC Slab Gate Valve, 1-13/16" to 9" bore, rated 2,000 to 20,000 psi.
View full details
API 6A Globe Valves
Model: E-L100 Globe Valve, 2-1/16" to 9" bore, rated 2,000 to 10,000 psi.
View full details
API 6A Check Valves
Model: E-L700 Check Valve, 2-1/16" to 7-1/16" bore, rated 2,000 to 15,000 psi.
View full details
API 6A Ball Valves
Model: E-L400 Ball Valve, 2-1/16" to 9" bore, rated 2,000 to 5,000 psi.
View full details
API 6A Ball Screw Gate Valves
Model: E-L600 Ball Screw Operated Valve, 3-1/16" to 9" bore, rated 5,000 to 20,000 psi.
View full details
API 6A Choke and Mud Valves
Model: E-L500 Mud Valve, sizes 2", 3", 4", and 5", rated 2,000 to 7,500 psi.
View full detailsApplicable Standards
- API 6A
- API 16C
Materials Available
Casting Material
- A487 4C
- A487 Gr9
- CA-15
- and other equivalents
Forging Material
- AISI 4130
- AISI 4135
- AISI 4140
- AISI 1040
- AISI 1045
- 410SS
- 17-4PH
- Inconel 718
- Inconel 625
Literature
Select what you'd like below and we'll email you secure download links.
Catalogue
Reference & Template
Unique to Ranger
High-Pressure Pneumatic Shell Test
For all cast steel gate, globe, and check valves, as well as cast trunnion and floating ball valves, RANGER-FZV submerges the completed, uncoated valve in water and pressure tests the casting with nitrogen or compressed air. Pinholes or casting deficits invisible to a standard hydrotest are revealed as bubbles in the water — castings have failed this test after passing hydrotest.
View full Casting Quality program →
