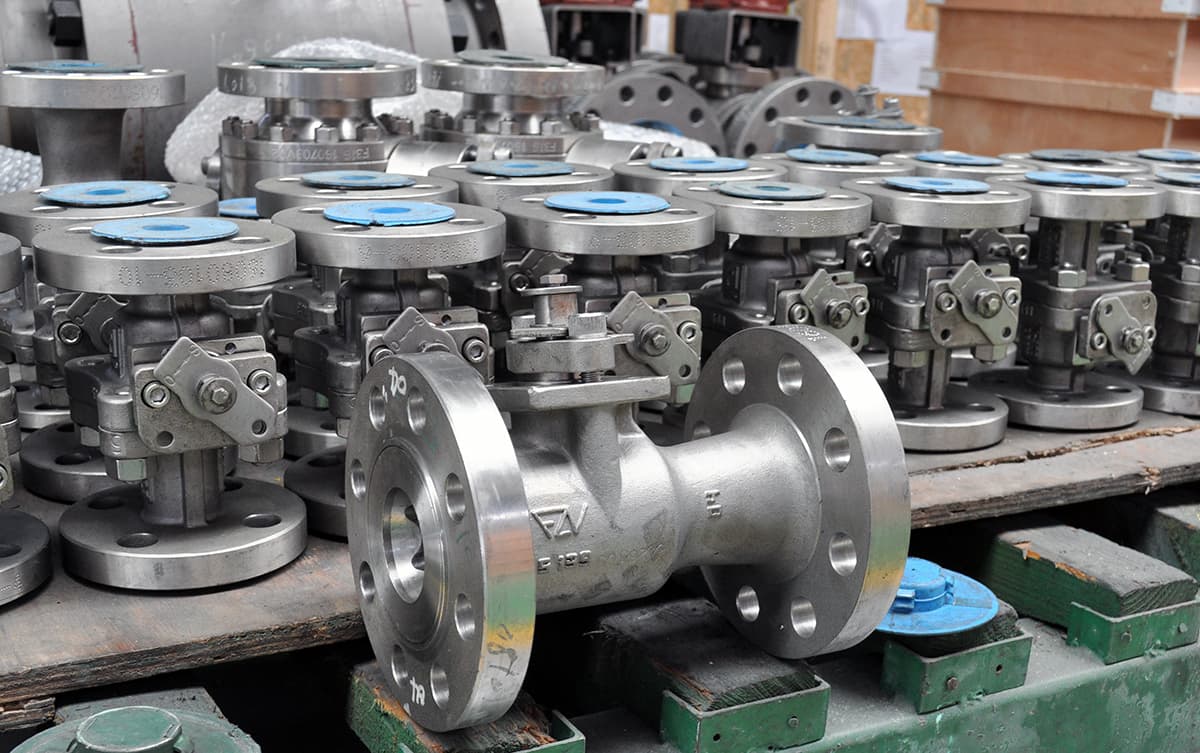

Floating Ball Valves
Two-piece floating ball valves engineered for general service and heavy duty applications including petroleum, petrochemical, and industrial service.
Size Range
1/2" – 10"
Class Range
150 – 600 (cast); 600 – 1500 (forged)
Reference
Design Standard
- API 608
- API 6D
- CSA Z245.15
- CSA B51-09
- ISO 17292
Face to Face
- ASME B16.10
Flange
- ASME B16.5
Marking
- MSS SP-25
Inspection
- API 598
Pressure & Temp.
- ASME B16.34
Quality
- MSS SP-55
Fire Safe Design
- ISO 10497, API 607
Sour
- NACE MR 0175
- ISO 15156-2009
Pressure Testing
- API 6D and low pressure air seat test
Safety Integrity Level
- SIL 3
- Self-relieving seats for automatic internal cavity relief
Design Features
- —Certified for use in Safety Integrity Level (SIL 3) applications
- —Two-piece bolted body for ease of field service and maintenance
- —Wide, flexible, self-relieving seat provides automatic internal cavity relief
- —O-ring free body seal design extends the temperature range and reduces media-compatibility concerns; other o-rings are AED (anti-explosive decompression) rated
- —Independent dual body seals and triple independent low-emission stem seals
- —Double anti-static stem (ball-to-stem and stem-to-body) for electrical continuity
- —Firesafe design per API 607 and ISO 10497
- —Blowout-proof stem with RPTFE thrust washer for low operating torque
- —Seat materials: RPTFE (15-20% carbon fiber) in Class 150 & 300, Devlon V in Class 600-1500
- —Adjustable, field-replaceable graphite stem packing with a two-bolt gland flange
- —Gear operators and lifting lugs standard on 6" bore and larger
- —Exceeds ASME B16.34 minimum wall thickness requirements
- —Optional HP-ENP™ high-phosphorus electroless nickel trim upgrade — harder and less porous than standard ENP or 316 stainless trim
Materials Available
Casting Material
- WCB
- LCB
- WC6
- WC9
- C5
- C12
- CF3
- CF3M
- CF8
- CF8M
- C95500
- 4A
- 5A
- Inconel 825/625
Forging Material
- A105
- LF2
- F11
- F12
- F304
- F321
- F347
- F316
- 304L
- 316L
- C61900
- F51
- F53
- F55
- Inconel
Literature
Select what you'd like below and we'll email you secure download links.
Catalogue
Snapshot & One-Pager
Unique to Ranger
High-Pressure Pneumatic Shell Test
For all cast steel gate, globe, and check valves, as well as cast trunnion and floating ball valves, RANGER-FZV submerges the completed, uncoated valve in water and pressure tests the casting with nitrogen or compressed air. Pinholes or casting deficits invisible to a standard hydrotest are revealed as bubbles in the water — castings have failed this test after passing hydrotest.
View full Casting Quality program →
