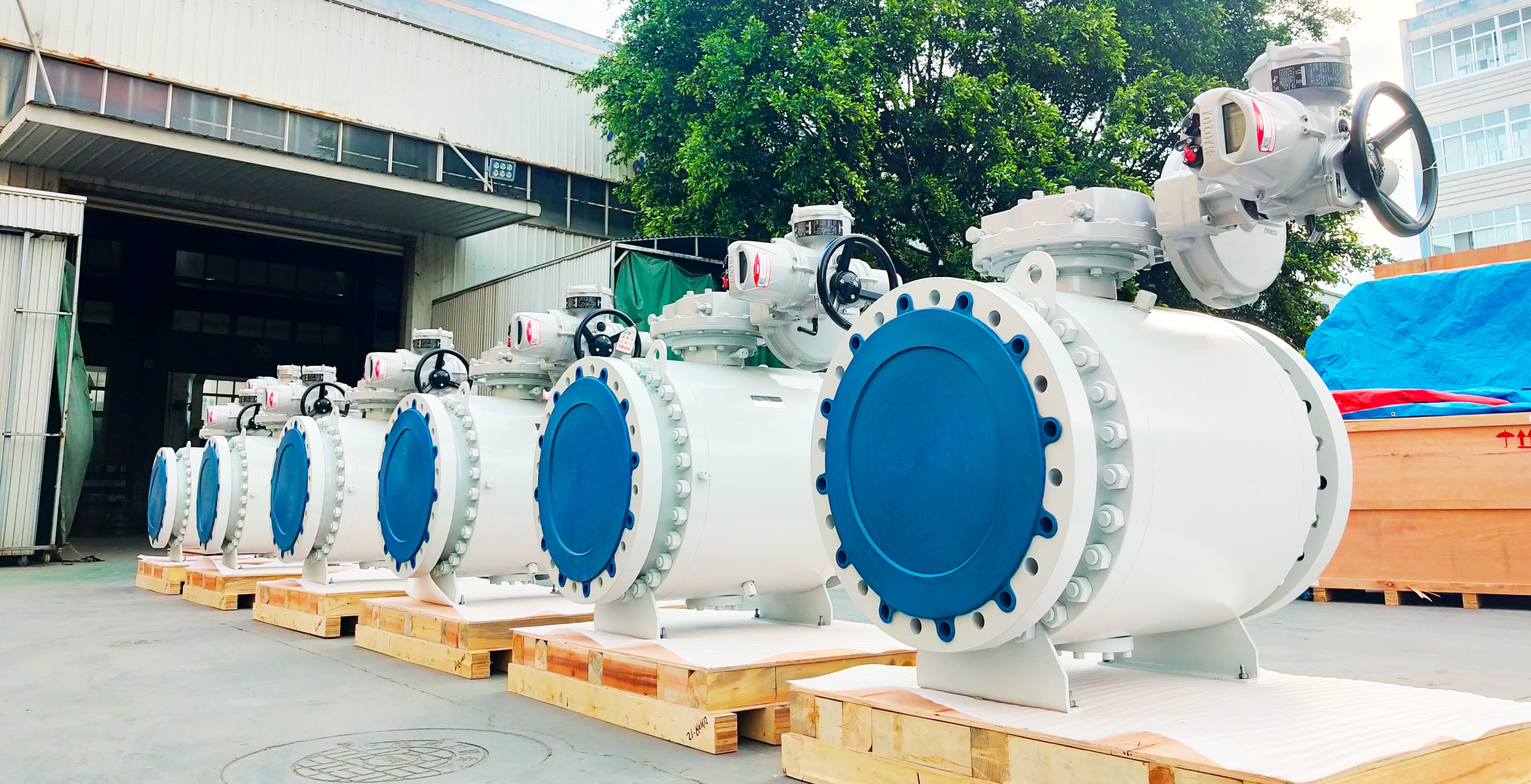

Trunnion Ball Valves
Cast and forged three-piece trunnion ball valves engineered for general service and heavy duty petroleum, petrochemical, and industrial applications.
Size Range
2" – 56"
Class Range
150 – 2500
Temperature Range
-46°C to 121°C
Reference
Design Standard
- API 6D
- CSA Z245.15
- API 608
- ISO 17292
- CSA B51
Face to Face
- ASME B16.10
Flange
- RF/RTJ: ASME B16.5
- Over 24": ASME B16.47 / MSS SP-44
- Butt weld: ASME B16.25
Marking
- MSS SP-25
Inspection
- API 598
Pressure & Temp.
- ASME B16.34
Quality
- MSS SP-55
Fire Safe Design
- API 607
Sour
- NACE MR0175
- ISO 15156
Top Flange
- ISO 5211
Pressure Testing
- API 6D, CSA Z245.15 — includes both high and low pressure air seat test
Documentation
- BS EN 10204-3.1
Safety Integrity Level
- SIL 3
Design Features
- —Certified for use in Safety Integrity Level (SIL 3) applications
- —Locking device prevents valve misoperation
- —Stem-flyout prevention design guards against abnormal cavity pressurization
- —Fireproof and antistatic design
- —Self-relieving, DIB-1, or DIB-2 seat design available depending on service
- —All sizes and classes are double block and bleed capable per API 6D, with a drain valve for the block-and-bleed function or to verify seat integrity during maintenance
- —Emergency stem and seat sealant injection ports on all sizes and classes
- —Buried check valve beneath the sealant injection fitting lets a damaged fitting be replaced without re-hydro testing the valve body
- —Anti-blowout stem per API 6D with dual anti-static springs
- —ISO 5211 mounting pad for ease of automation
- —Lockable handle or gear standard per API 608
- —Cryogenic designs and metal-seated severe-service options available
- —Optional HP-ENP™ high-phosphorus electroless nickel trim upgrade — harder and less porous than standard ENP or 316 stainless trim
Materials Available
Casting Material
- WCB
- LCB
- WC6
- WC9
- C5
- C12
- CF3
- CF3M
- CF8
- CF8M
- C95500
- 4A
- 5A
- Inconel 825/625
Forging Material
- A105
- LF2
- F11
- F12
- F304
- F321
- F347
- F316
- 304L
- 316L
- C61900
- F51
- F53
- F55
- Inconel
Literature
Select what you'd like below and we'll email you secure download links.
Catalogue
Snapshot & One-Pager
Unique to Ranger
High-Pressure Pneumatic Shell Test
For all cast steel gate, globe, and check valves, as well as cast trunnion and floating ball valves, RANGER-FZV submerges the completed, uncoated valve in water and pressure tests the casting with nitrogen or compressed air. Pinholes or casting deficits invisible to a standard hydrotest are revealed as bubbles in the water — castings have failed this test after passing hydrotest.
View full Casting Quality program →
